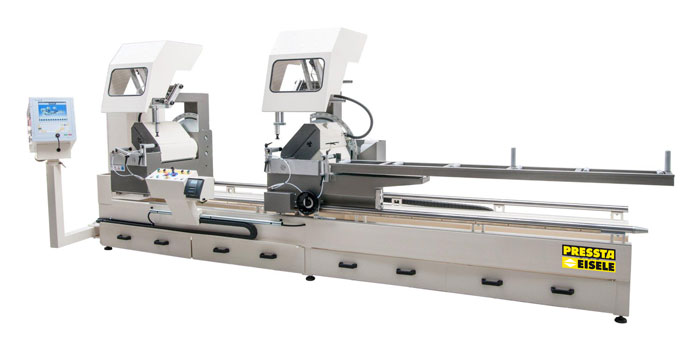

SW 453 REVERSE GARDA – Double Head Mitre Saw

  • double head mitre saw with automatic positioning of the right cutting head
  • pneumatic tilting of the heads to 135°, 90°, 45°a 22,5°, intermediate angles setting by means of mechanical stops
  • hydropneumatic saw blade feed
  • cutting length 4000 mm (7650 mm with accessories), 5000 mm (9650 mm with accessories), 6000 mm (11 650 mm with accessories)
  • control unit EC 700x
  • positioning accuracy  ±0,1 mm
  • saw blade diameter  450/500 mm, saw blade bore 30 mm
  • power output per motor  2,2 kW
  • 2 vertical pneumatic clamps
  • 2 horizontal pneumatic clamps
  • 2 additional horizontal pneumatic clamps
  • mist spray lubrication  (Venturi)
SKU: ebeb3dcdfa70
