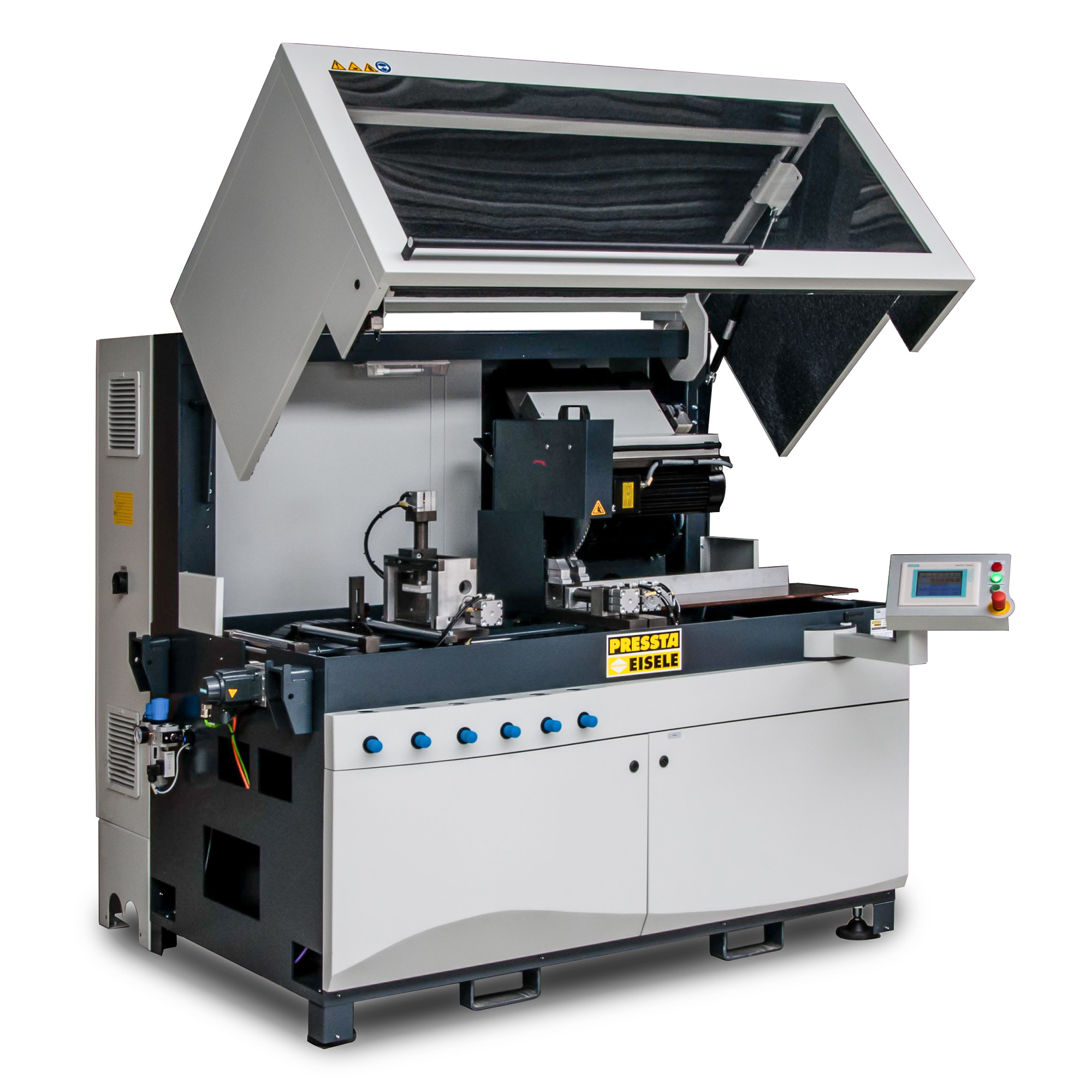

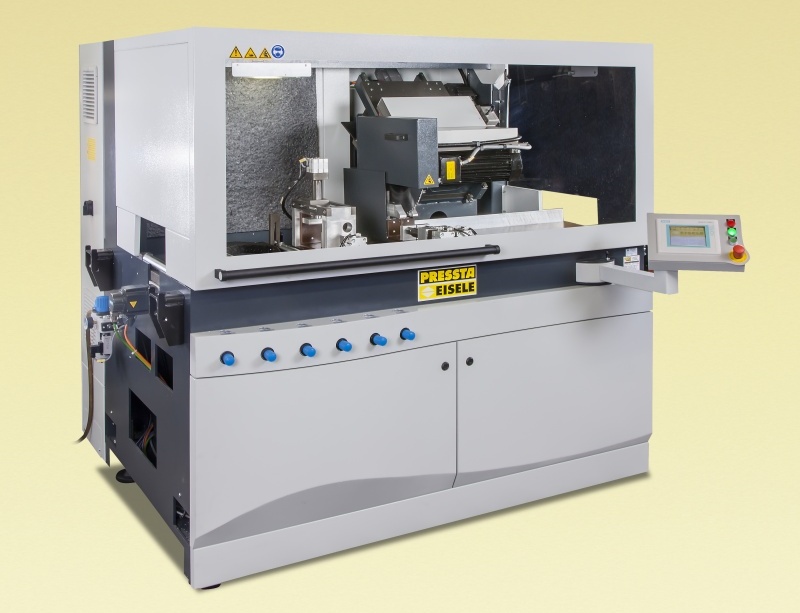

PROFILMA 400V – Automatic circular saw

power 12kW, 400 V S6 60%, 50 Hz, 2850 ot./min.
stepless saw blade speed adjustment in range 500 – 4800 rpm
saw blade diameter Ø400 mm
profile width 200 mm, max.profile height 120 mm
profile cross-section 20 x 10 mm (H x W), smaller profile cross-section on request
cut-off length from 10 mm with standard clamps
cut-off length from 3 mm with special clamps (option)
waste piece from 85 mm

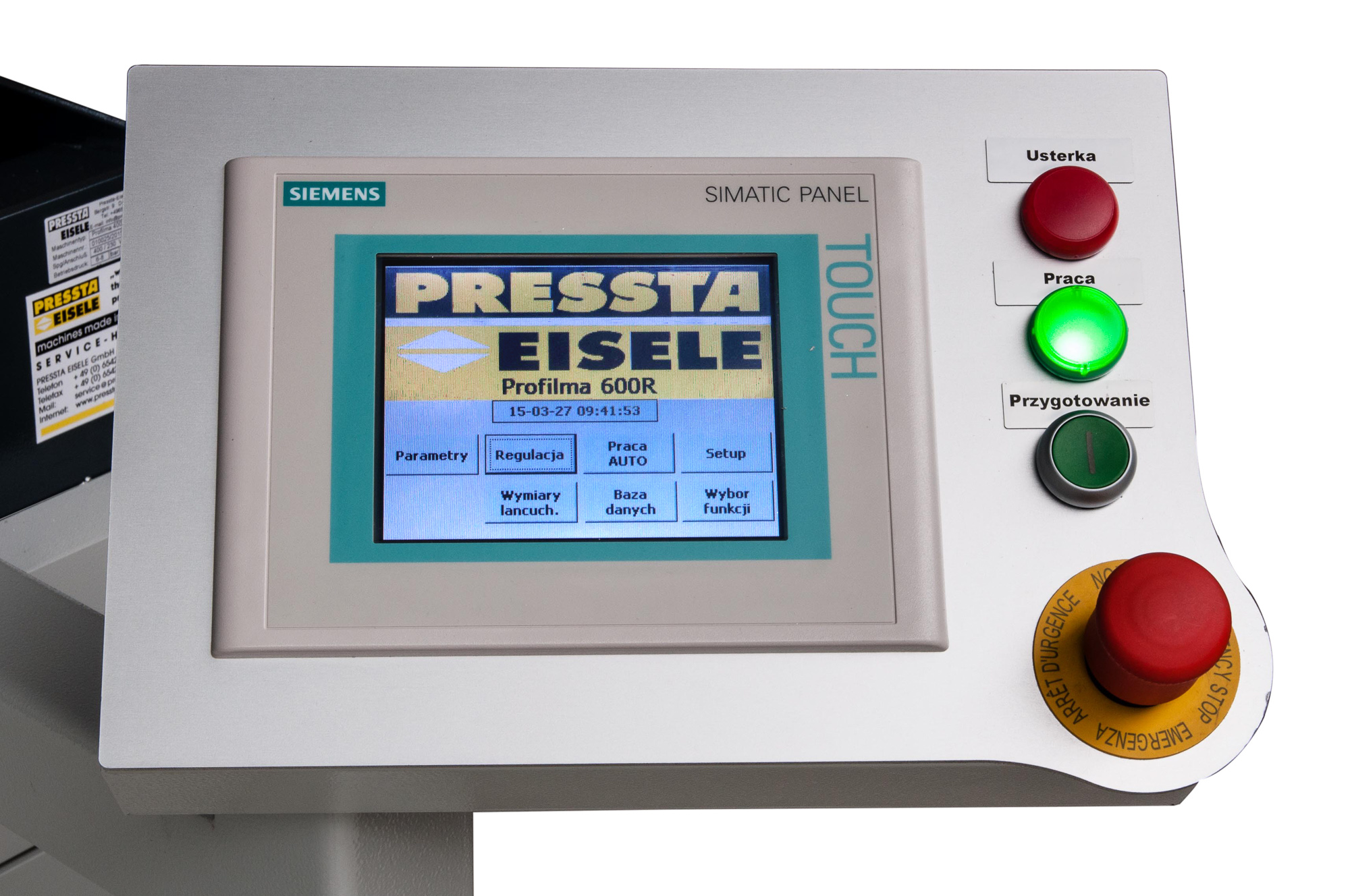

NC control SIMATIC S7-300 with a touch screen 7“
Multiple feed device – max.feed 3250 mm
table separation before the saw blade retracts

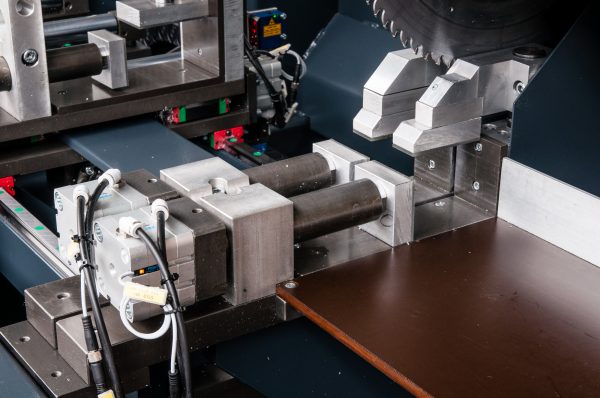

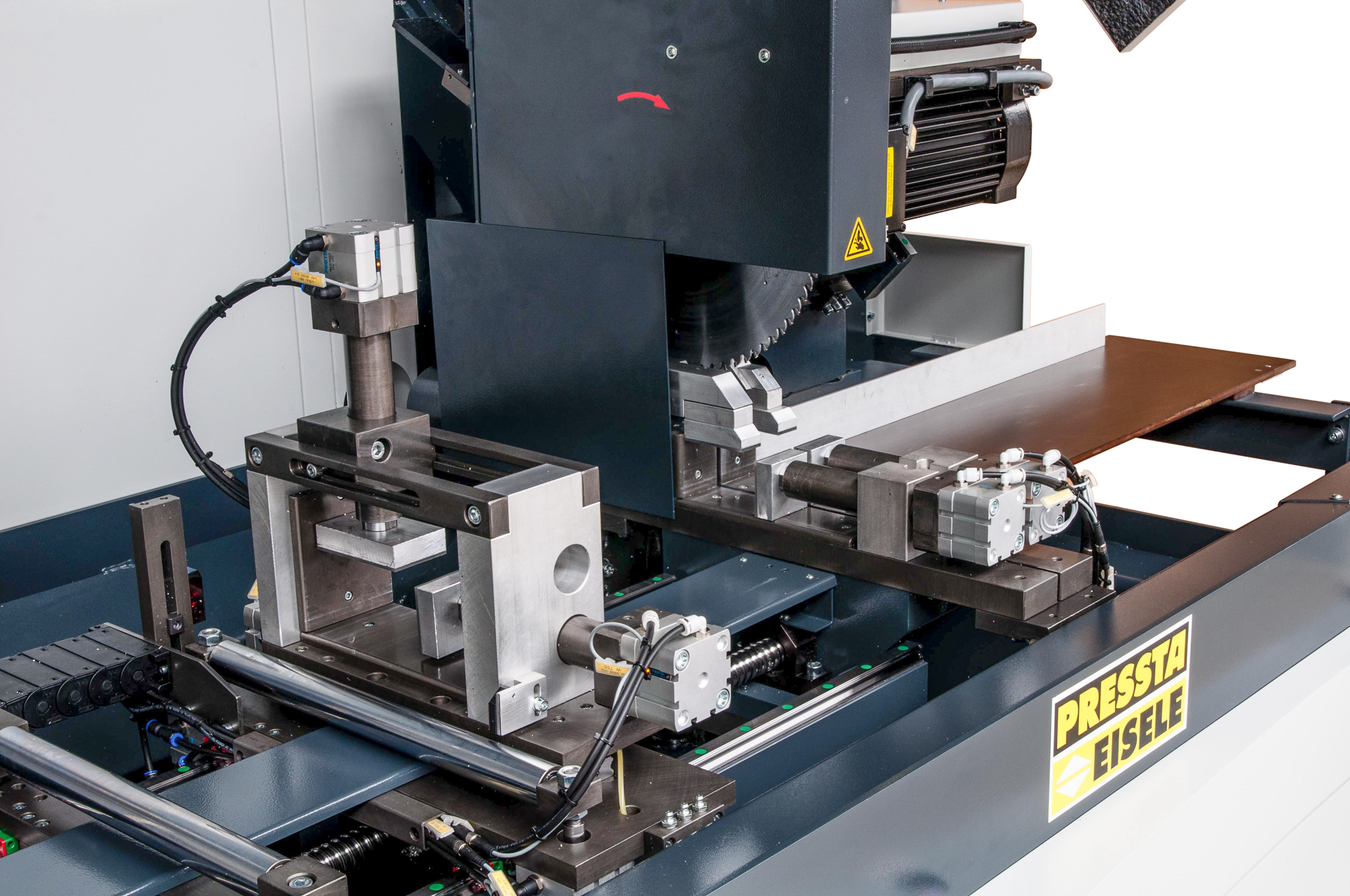

horizontal and vertical clamps
